Choose Screen Size

65"
75"

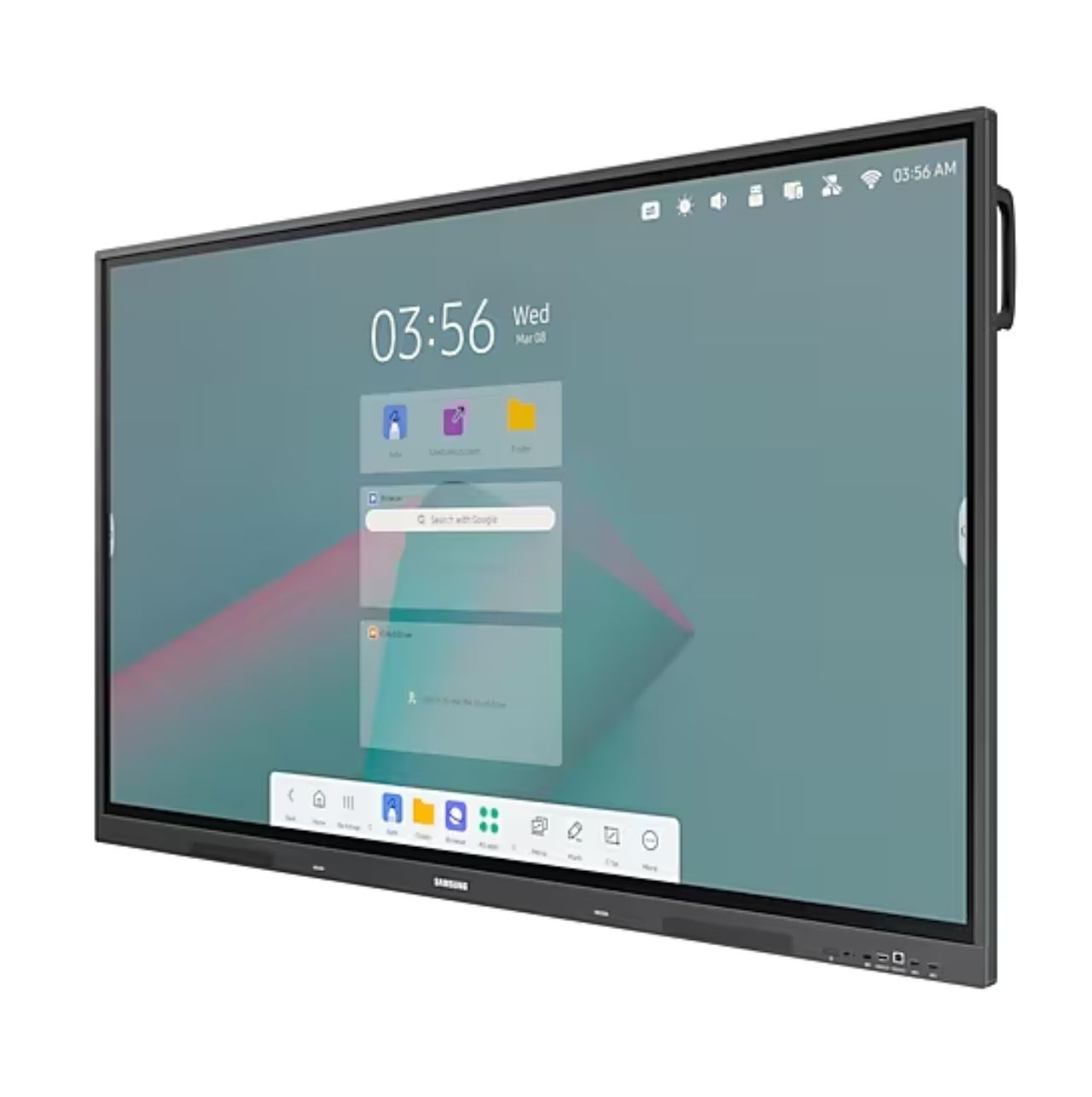

Interactive Display 75" - WAC Series

  • The Samsung WAC series of interactive displays revolutionizes the classroom experience, bringing a dynamic and captivating learning environment to the future generation.
  • With its Android 11 OS* foundation, teachers can effortlessly navigate through its user-friendly interface. The WAC series offers a range of screen modes, such as split screen and multi-window, allowing seamless presentations and multitasking.
  • Moreover, with the ability to share up to nine screens simultaneously, every student can actively participate and stay engaged, maximizing productivity in real-time.

The Samsung interactive display WAC series is revolutionizing the classroom of the future with its interactive features and Android 11 OS. With its intuitive and convenient usability, this product allows teachers to easily enhance the learning experience for their students. The compatibility with Android devices makes it seamless for teachers to incorporate technology into their lessons and customize the home screen with frequently used apps for added convenience.

One of the standout features of the WAC series is its multiple screen mode options. Teachers can utilize the split screen and multi-window functions to display and read multiple windows simultaneously. This flexibility enables educators to access all the necessary information for a truly engaging learning environment. Additionally, the powerful screen sharing capability allows users to share up to nine screens at once, ensuring that every student can actively participate and contribute. This feature is compatible with a variety of operating systems such as IOS, Mac, Windows, Android, and Chrome OS.

The WAC series also boasts advanced multi-touch capabilities, allowing multiple users to write and draw on the whiteboard simultaneously. With the dual pen function, two different writing tools can be used concurrently, thanks to the double-sided nib. This innovative feature makes it effortless for teachers to switch between two different colors on the front and back side of the pen, further enhancing creativity and collaboration in the classroom.

Overall, the Samsung interactive display WAC series offers unlimited learning possibilities with its dynamic and engaging features. From its Android 11 OS to the multiple screen mode options and powerful screen sharing capability, this product is truly paving the way for the classroom of the future.

Display
Resolution : 3,840 x 2,160 (Landscape)
Contrast Ratio (Typical) : 1,200:1
Viewing Angle (H/V) : 178:178
Response Time : 8ms
Operation Hours : 16/7
Diagonal Size : 75"

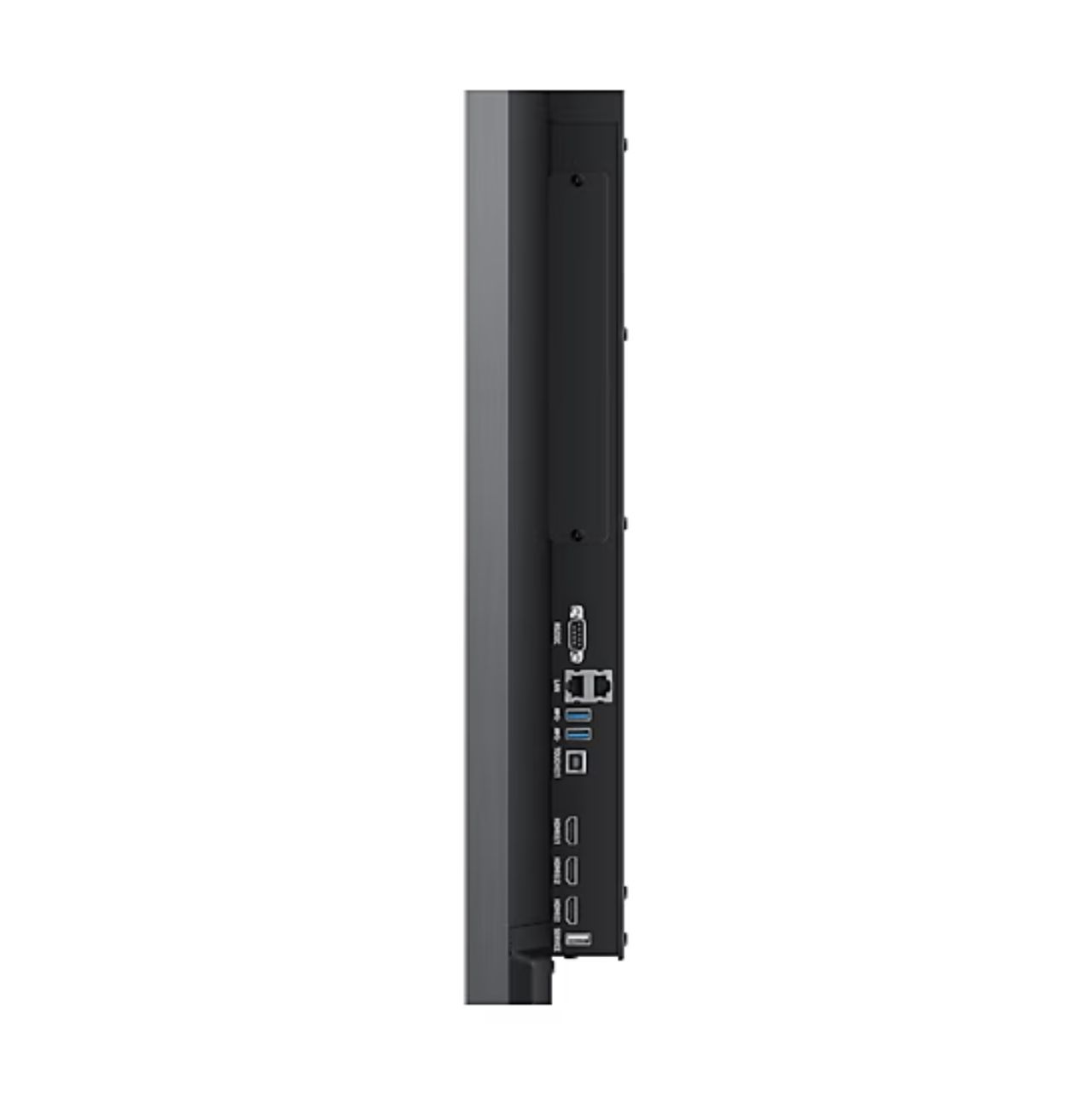

Connectivity
Output : RGB: N/A VIDEO: HDMI Out (Rear) AUDIO: 1(Stereo Mini Jack) Touch Out: Touch Out 2 (Front 1, Rear 1)
Input : RGB: 1 VIDEO: HDMI 3(Rear 2, Front 1), USB C(Front), OPS AUDIO: 1(Stereo Mini Jack) USB: 5 (2.0 X1, 3.0X4)
Internal Sensor : Eco Sensor

Power
Power Supply : AC100-240V 50/60Hz
Power Consumption (Typical/Max) : 385W
Power Consumption (Standby) : 0.5
Type : Internal
Power Consumption : Max [W/h]: 385W, Typical [W/h]: 200W Rating [W/h]: 350W Stand-by [W/h]: 0.5 BTU[ W/h]: 1313

Environmental Conditions
Operating Temperature : 104 F
Operating Humidity : 10~80%

Features
Key : Android App Launcher

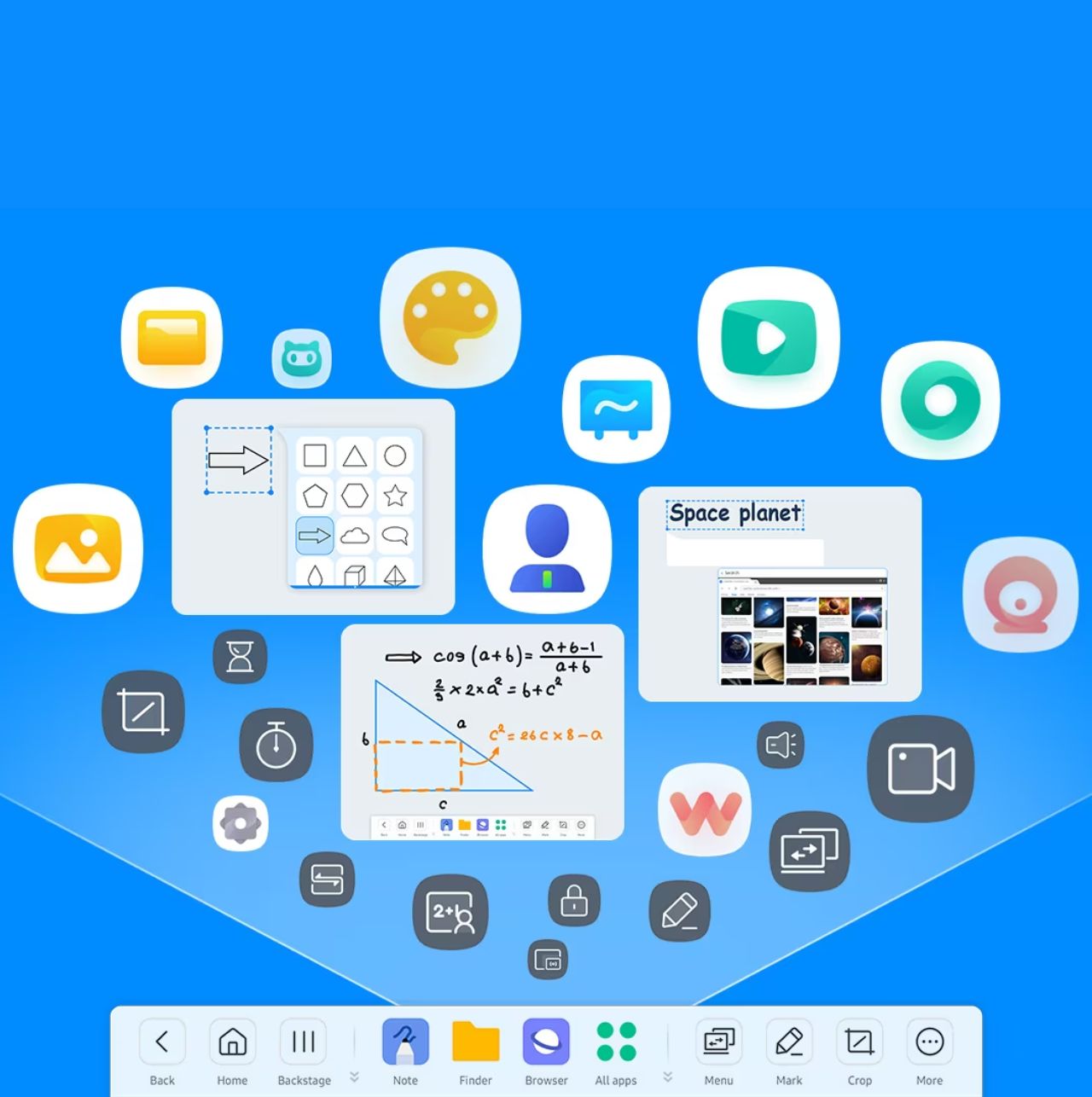

S/W : First screen: Home UI (Multi Windows supported) Apps: Note app, Screeshare, Finder, Browser, etc WebRTC: Yes Screen Share: Yes
Speaker Type : Built in Speaker (12W X 2CH)
Built-in WiFi : Yes
Built-in Speakers : Yes
System On Chip : Yes
H/W : Touch Overlay(IR), Front Connectivity, OPS I/F Support(w/OPS Box), Eco Sensor, WiFi/BT Module Inbox
Orientation : Landscape

Touch
Type : IR
# Of Drawing : 40 points to touch
Touch Pen Type : Passive Pen
Object Recognition Range : 5mm/10mm/15mm
Touch Response Time : ≤10ms
Haze : 25%
Drawing Speed (Touch Latency) : ≤45ms
Thickness : 3.2T
Hardness : Hardness

Internal Player
Processor : A55 X 4
Storage : 32GB
Operating System : Android 11 (AOSP)
RAM : 4GB

Dimensions
Set Dimension (WxHxD) : 5.60 X 3.34 X 0.28 in
Package Dimensions (W X H X D) : 6.11 X 3.74 X 0.73 in

Weight
Package Weight : 138.67 lbs
Set Weight : 102.29 lbs

Accessories
Included In Box : Power Cord, Remote Controller, HDMI Cable, Touch Pen(2ea, Black), USB Cable, Warranty/QSG
Optional Wall Mount Kit : N / A (3rd party company stand/mount can be supported through VESA)
Optional Stand : N / A (3rd party company stand/mount can be supported through VESA)

Mechanical Specs
VESA Mount : 800 X 400
Color : Space Gray
Protection Glass : Yes
Stand Type : Wall Mount
Media Player Option Type : OPS Slot support
Rotation : Landscape only
Power Cable Length : 3m
Accessory : Power Cord, Remote Controller, HDMI Cable, Touch Pen(2ea, Black), USB Cable, Warranty/QSG

Operation Conditions
Temperature : 0℃~40℃
Humidity : 10~80%

Display Panel
Resolution : 3,840 x 2,160 (Landscape)
Contrast Ratio (Typ) : 1,200:1
Brightness (Typ.) : 390cd/m2 (without glass)

Connectivity / Sounds
WiFi / BT : Yes (Keyboard/Mouse)
External Control : Touch Input RS232C In/Out, RJ45 In/Out
