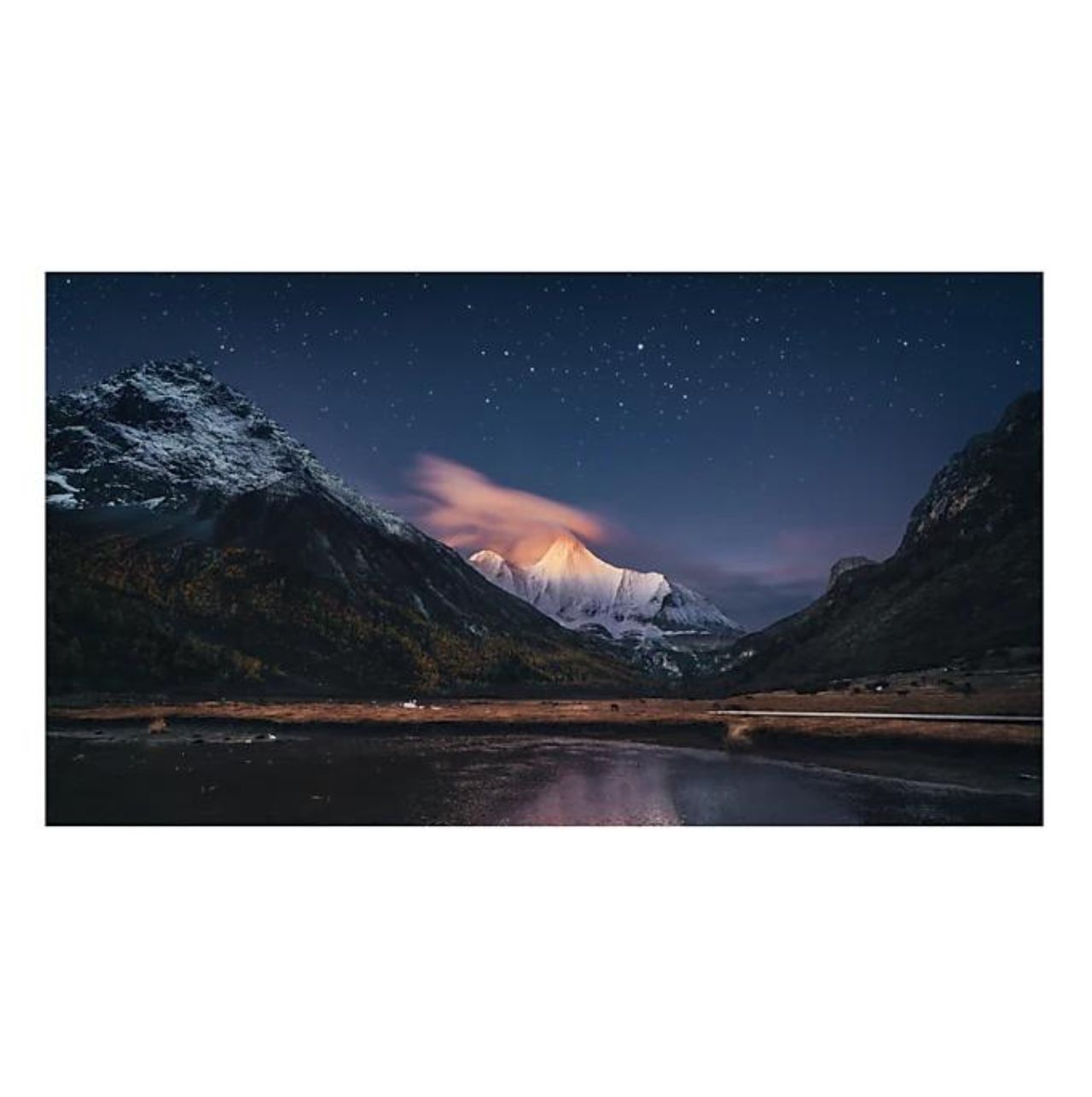

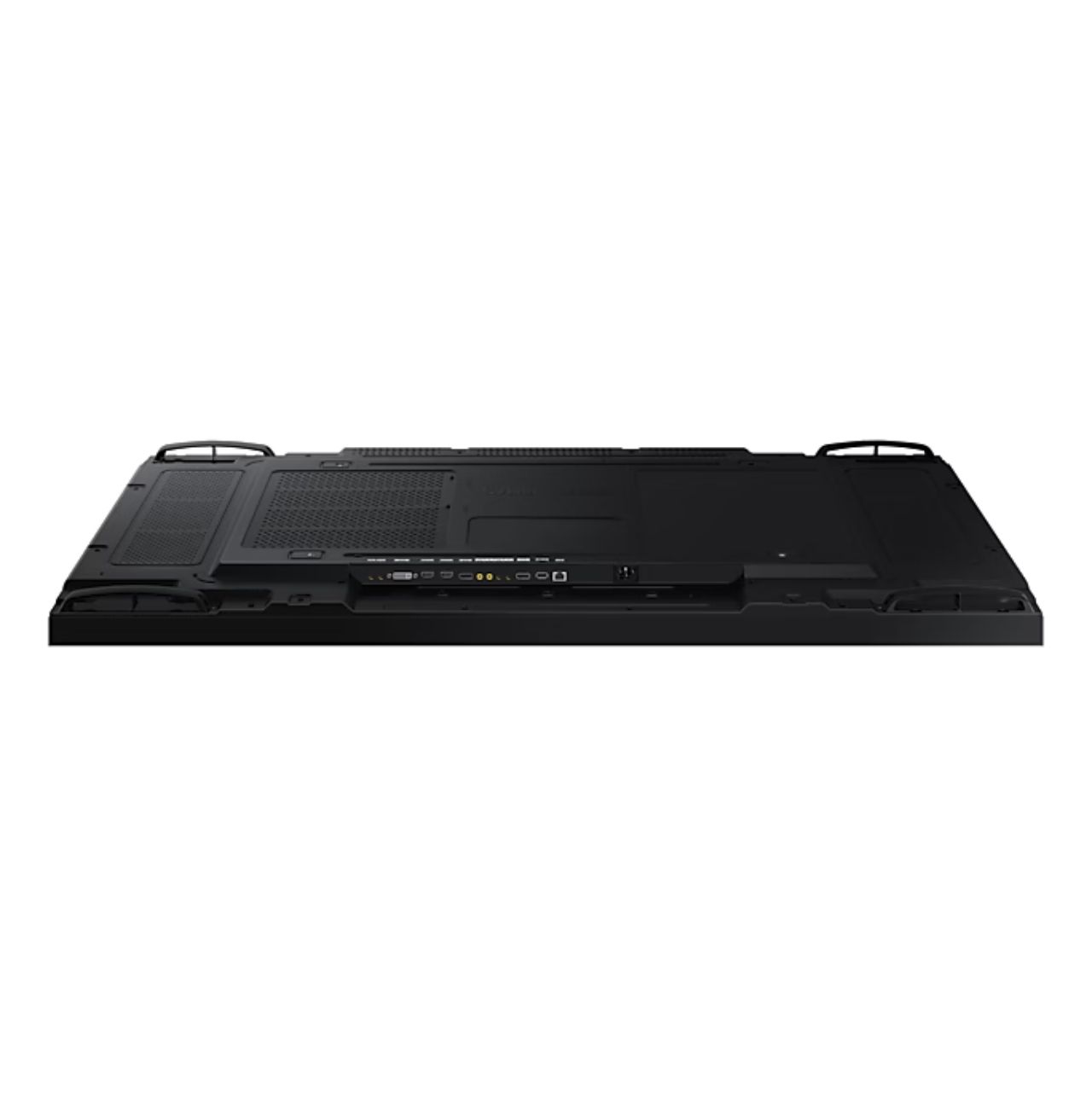

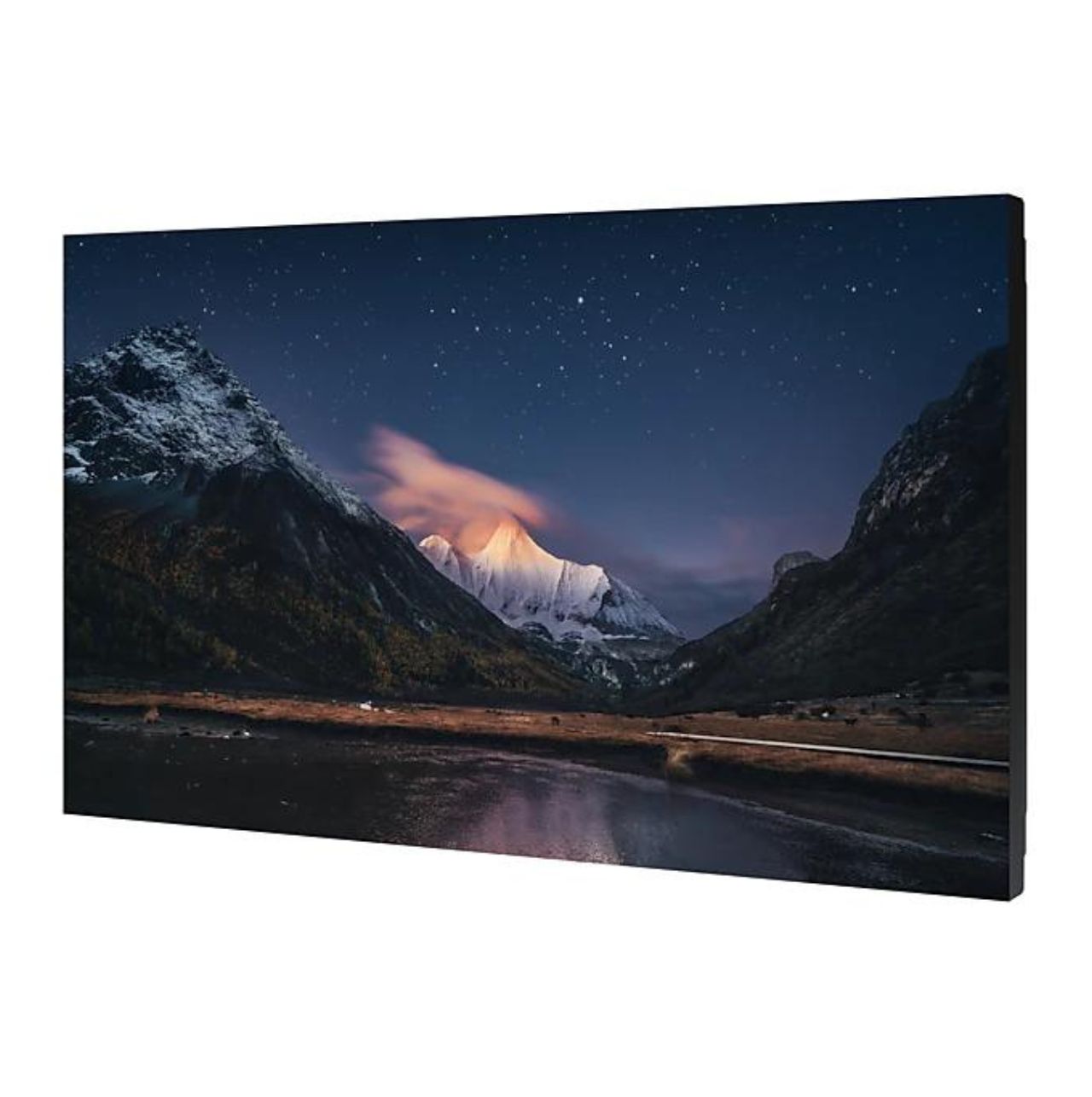

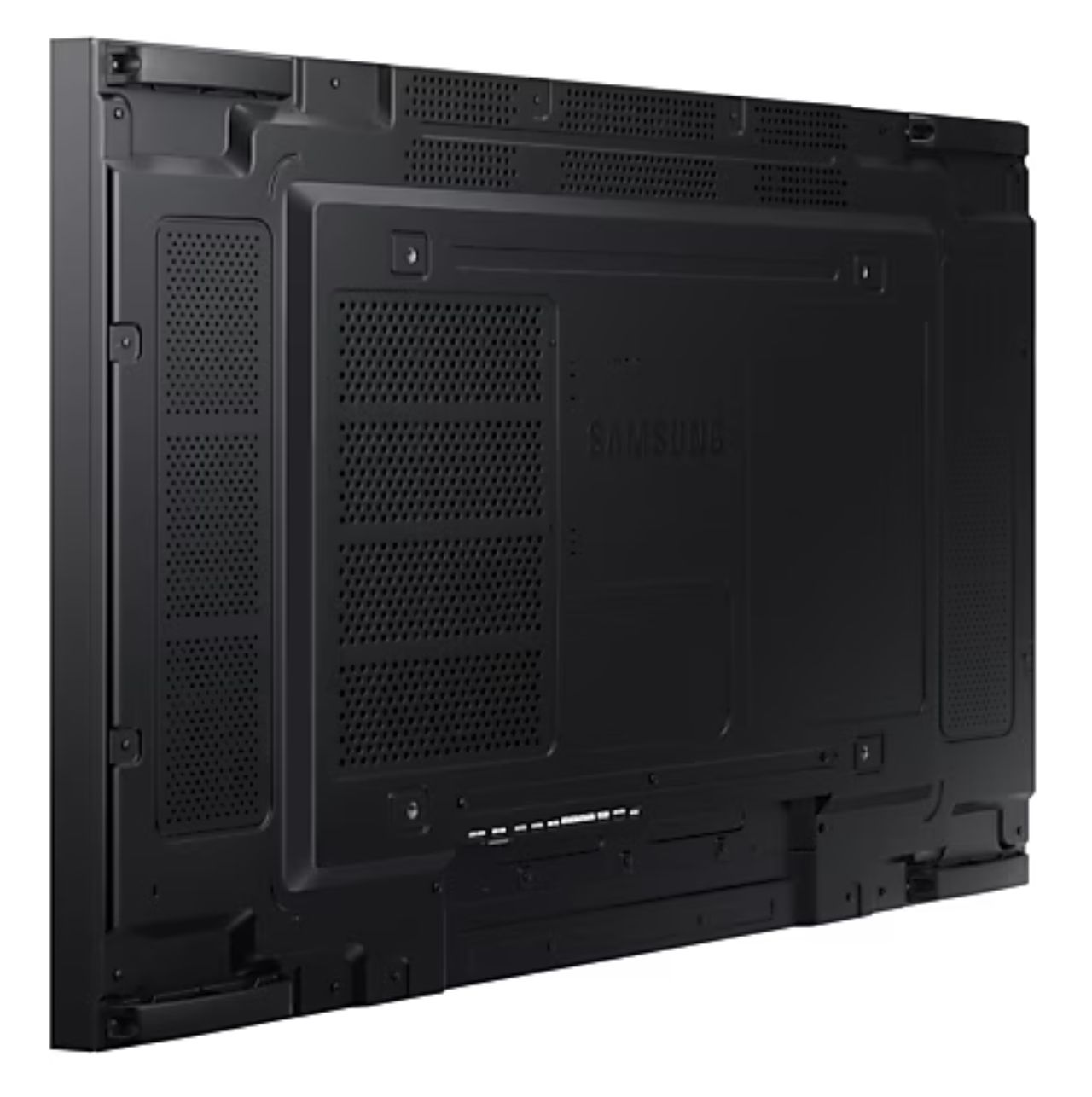

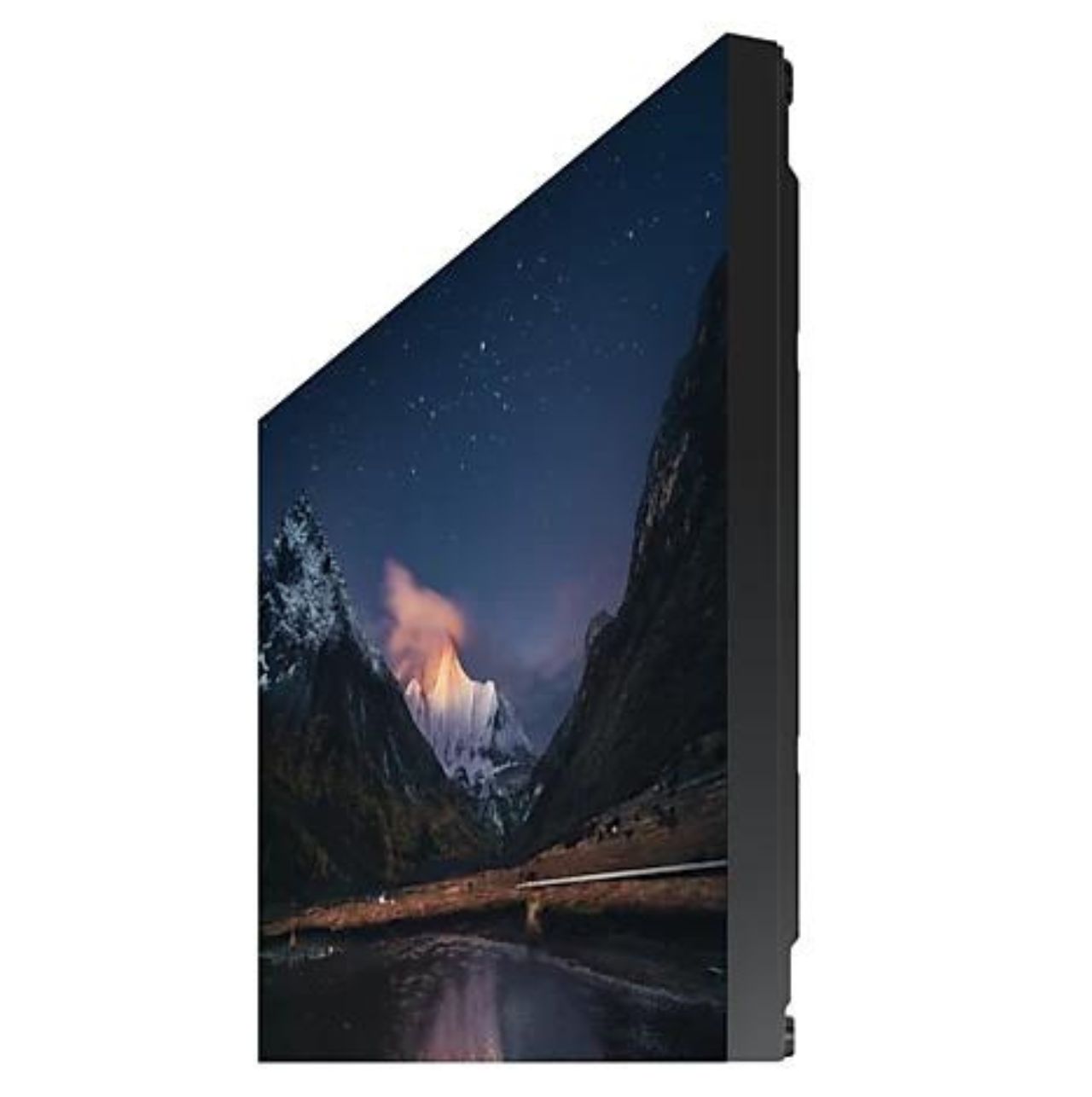

Razor Narrow Bezel Video Wall -1m 38cm, 55" - VMB

  • Wide viewing angles enabling clear image presentation
  • Razor-thin 0.44mm even bezel design
  • Up to 500 nit brightness and non-glare panel providing 24/7 high visibility


The Razor Narrow Bezel Video Wall, measuring 1m 38cm and spanning 55 inches, is a cutting-edge display with a sleek and modern design. It boasts an incredibly thin bezel, measuring just 0.44 mm, and is equipped with Samsung's advanced picture enhancement technology. This ensures that every image displayed is vibrant and clear, delivering an impactful and seamless viewing experience. One of the key features of this video wall is its wide viewing angles, which allows viewers to easily see the content, even if they are not directly in front of the display. This eliminates any potential image distortion and provides a more immersive viewing experience.

The VHR-R display also stands out with its elevated design aesthetic, with an ultra-slim depth of less than 70 mm. This slim profile adds to its overall appeal and makes it perfect for spaces where space-saving is essential. Moreover, this video wall offers a remarkable 700 nit brightness, ensuring that businesses can display clear information at any time of the day, 24/7.

Furthermore, Samsung's daisy chain design utilizing DisplayPort 1.2 and HDMI ports allows the VHR-R display to project UHD content across multiple screens. With this feature, businesses can easily create large video walls with up to 5x5 configurations, without requiring external graphic cards or UHD splitters. This makes installation and configuration hassle-free and minimizes the need for additional equipment.

Overall, the Razor Narrow Bezel Video Wall combines advanced technology, stunning design, and seamless functionality to deliver an impressive UHD viewing experience. Whether it's for a retail store, corporate office, or any other commercial space, this video wall is an excellent choice for businesses looking to wow their audiences.

Display
Diagonal Size : 55"
Panel Type : Direct LED
Resolution : 1,920 x 1,080
Pixel Pitch (HxV) : 0.63x0.63
Brightness (Typical) : Max 700 cd/㎡
Contrast Ratio : 1,100:1
Viewing Angle (H/V) : 178/178
Response Time : 8ms
Color Gamut : 0.72 %
Glass Haze : 0.28 %
H-Scanning Frequency : 57.3kHz ~ 70kHz
Maximum Pixel Frequency : 78MHz
V-Scanning Frequency : 47Hz ~ 63Hz
Contrast Ratio (Dynamic) : 30,000:1

Connectivity
HDMI In : 2
DP In : 1
DVI In : 1
Tuner In : No
USB : 1
Component In : No
Composite In : No
IR In : Yes
HDBaseT In : No
Audio In : Yes
Audio Out : Stereo Mini Jack
Video Out : Yes
Power Out : No
RS232 In : Yes
RS232 Out : Stereo Mini Jack
RJ45 In : Yes
RJ45 Out : No

Power
Power Supply : AC 100 to 240 VAC (60 / 50Hz)
Power Consumption (On Mode) : 270W
Power Consumption (Sleep Mode) : 0.5W

Dimension
Set Dimension (WxHxD) : 1211.0 x 681.7 x 69.9 mm
Package Dimension (WxHxD) : 1414.0 x 844.0 x 257.0 mm

Operation Conditions
Temperature : 0℃~ 40℃
Humidity : 10 ~ 90%

Mechanical Specification
VESA Mount : 600 x 400 mm
Bezel Width : 0.44 (even)
Frame Material : Glossy
