Choose Screen Size

P2.5
P1.90

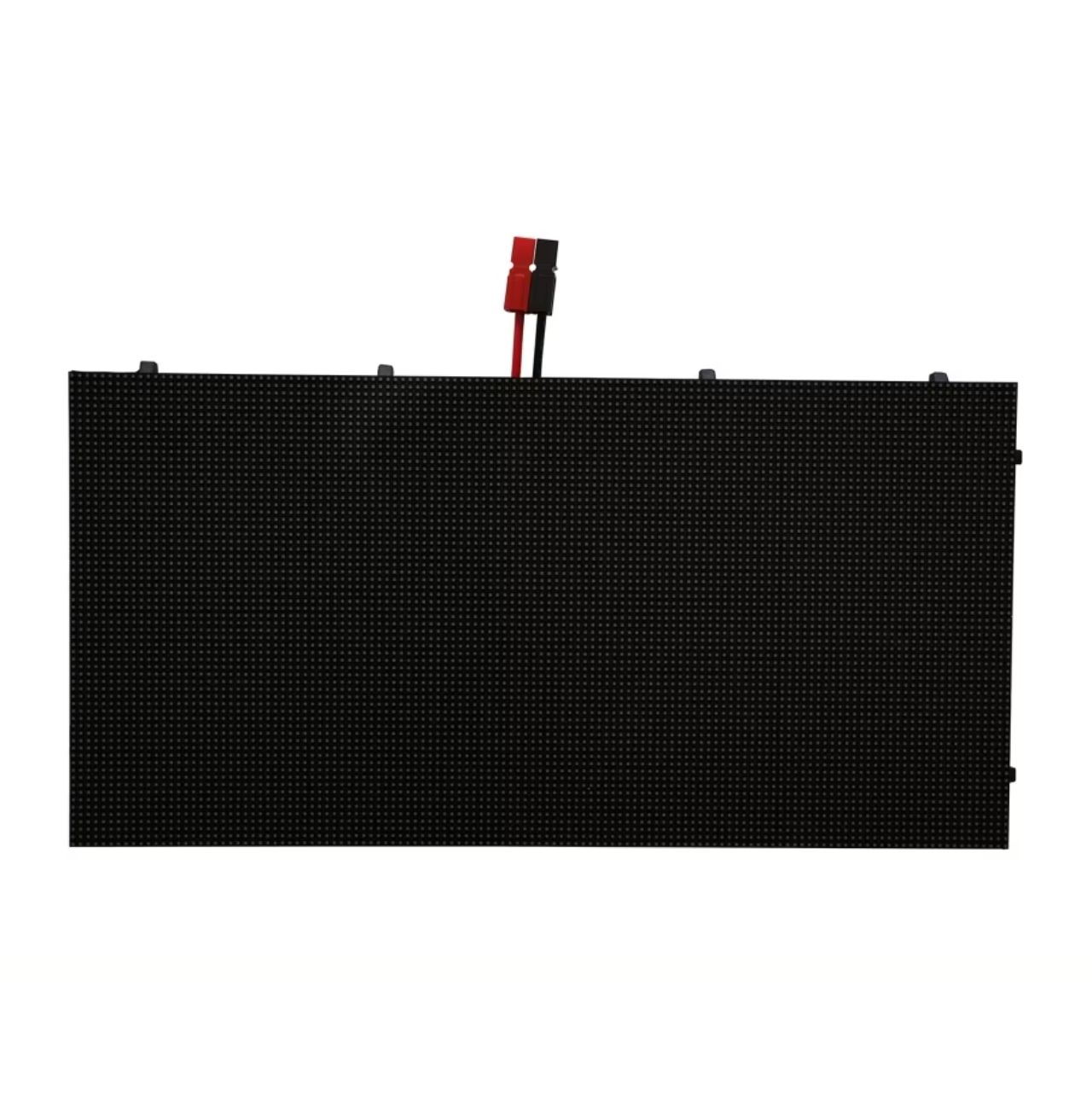

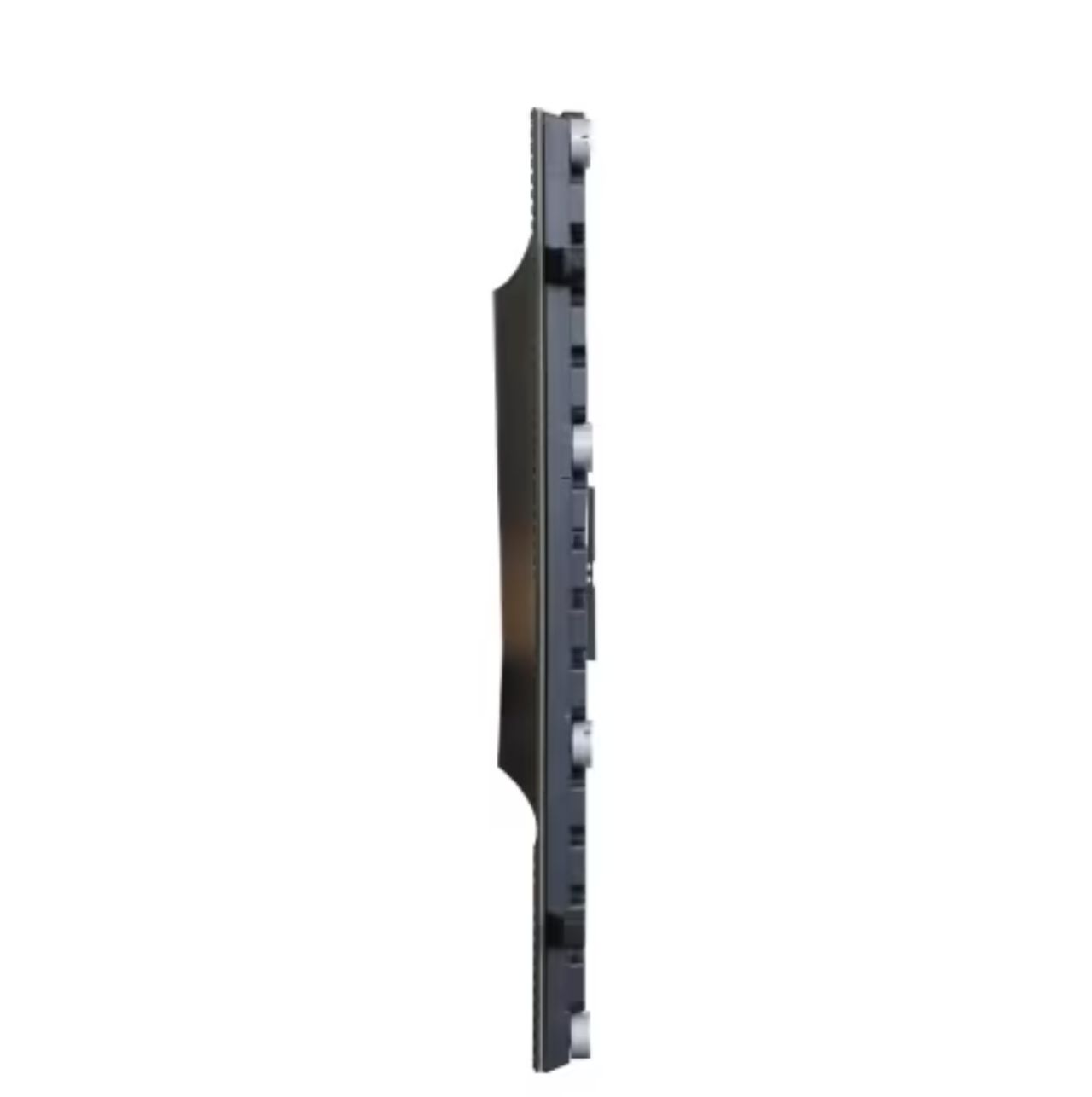

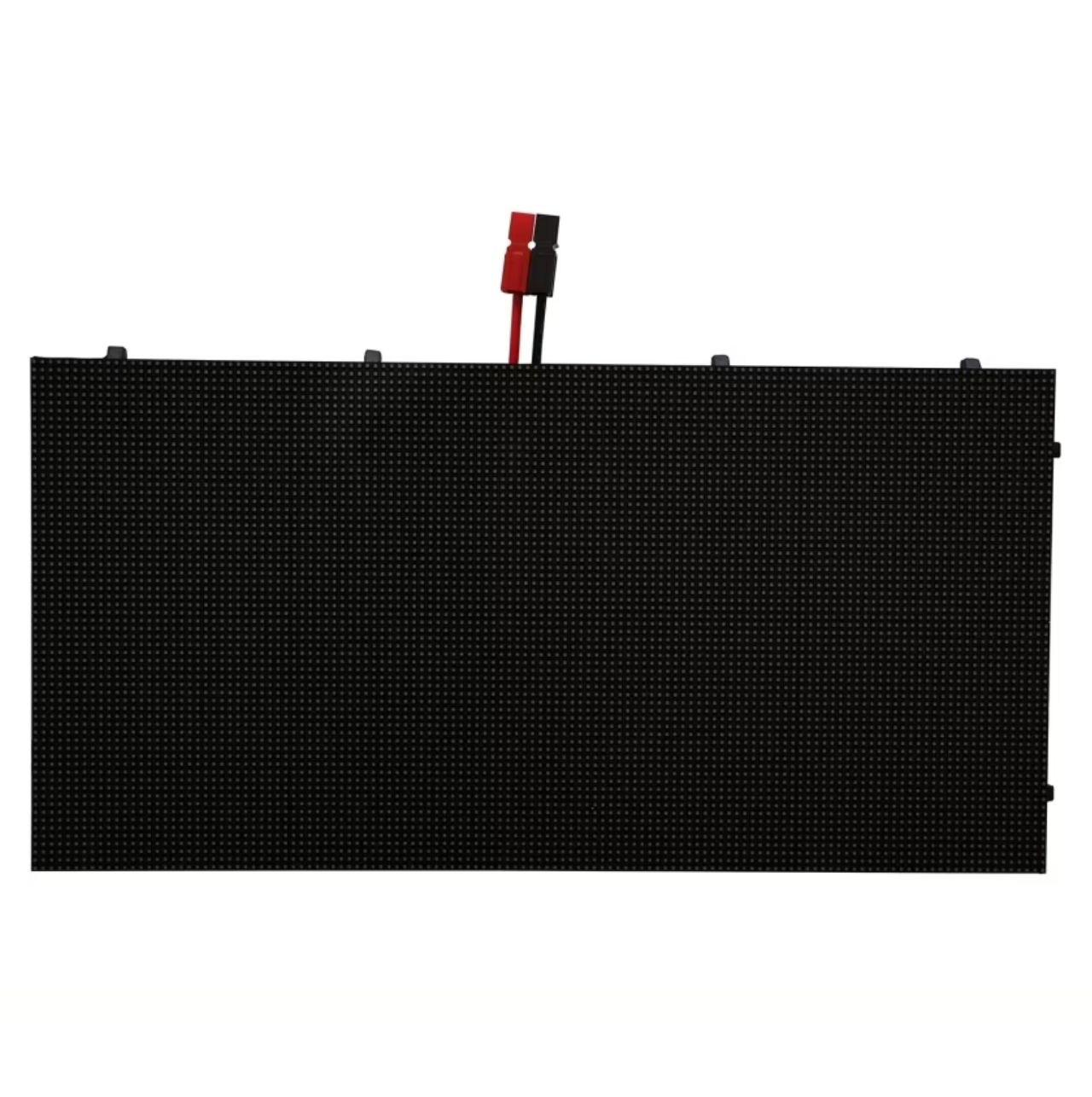

LED Display (Flexible) - LCCM

Key Features

  • Pixel Pitch: 2.50 mm
  • Brightness: 1,200 nit
  • Creative LED Screen
  • Easy Installation and Maintenance
  • Compatibility with LG Software Solutions


A flexible LED display with a pixel pitch of P2.5 can be an excellent choice for brand advertising. This type of display offers the advantage of flexibility, allowing it to be curved or shaped to fit various installations and creative designs.

The pixel pitch of P2.5 indicates that the distance between the centers of adjacent pixels is 2.5 millimeters. This small pixel pitch enables the display to deliver high-resolution and detailed visuals, ensuring that your brand advertising content is sharp and clear.

Flexible LED displays are versatile and can be used in various indoor and outdoor applications. They are commonly used in retail stores, trade shows, exhibitions, stadiums, and other venues where brand advertising is crucial. The flexibility of the display allows for unique and eye-catching installation.


OPTICAL SPECIFICATIONS
Max Brightness (After Calibration, Nit) : 1,200
Color Temperature (K) : 3,200~9,300
Visual Viewing Angle (Horizontal) : 160
Visual Viewing Angle (Vertical) : 160
Brightness Uniformity : 97%
Color Uniformity : ±0.003CxCy
Contrast Ratio : 5,000:1

PHYSICAL PARAMETERS
Pitch Name : P2.5
Pixel Configuration : 3 in 1
Pixel Pitch(mm) : 2.50
Module Resolution (WxH) : 128x64
Module Dimensions(WxH,mm) : 320x160
Weight Per Module (kg) : 0.50
Physical Pixel Density (pixels/m²) : 160,000
Flatness Of Cabinet (mm) : ±1.0
Cabinet Material : Al
Service Access : Front

OPERATION SPECIFICATIONS
LED Lifetime (Half Brightness) : 100,000
Operating Temperature(℃) : -30℃ to +45℃
Operating Humidity : 10~90%RH
IP Rating Front : IP30
IP Rating Rear : IP30
