Choose Screen Size

P2.5
P1.90

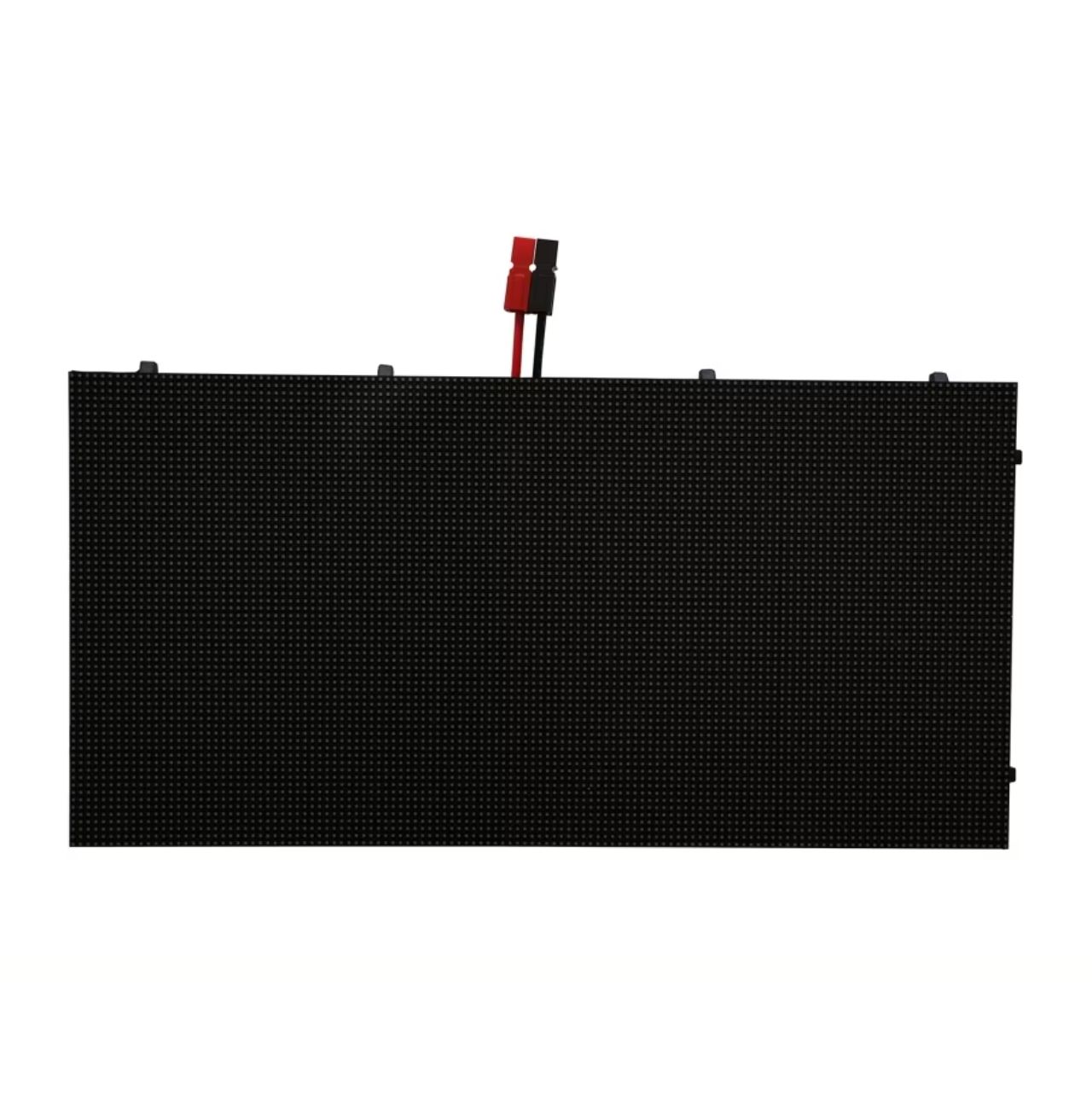

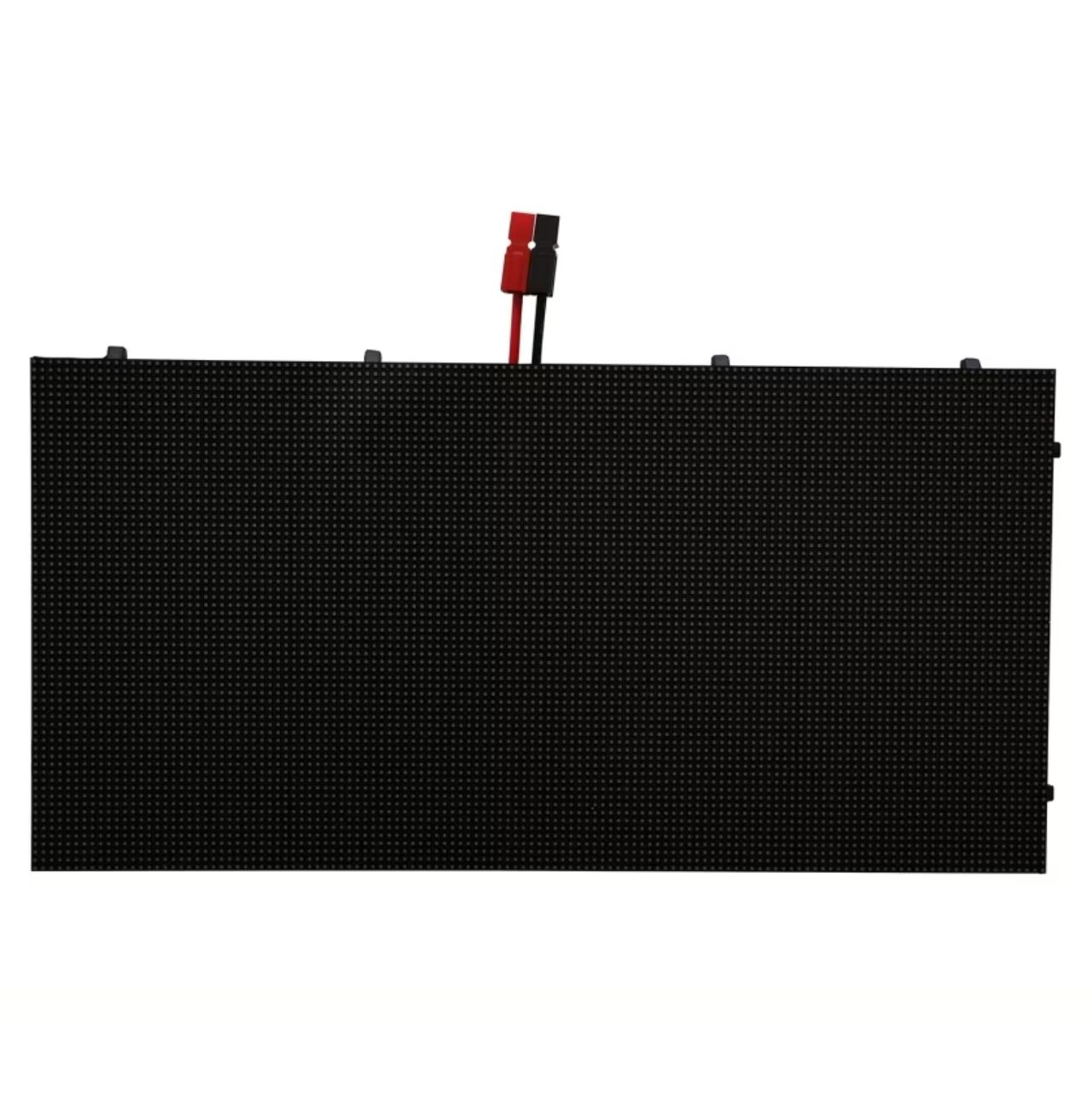

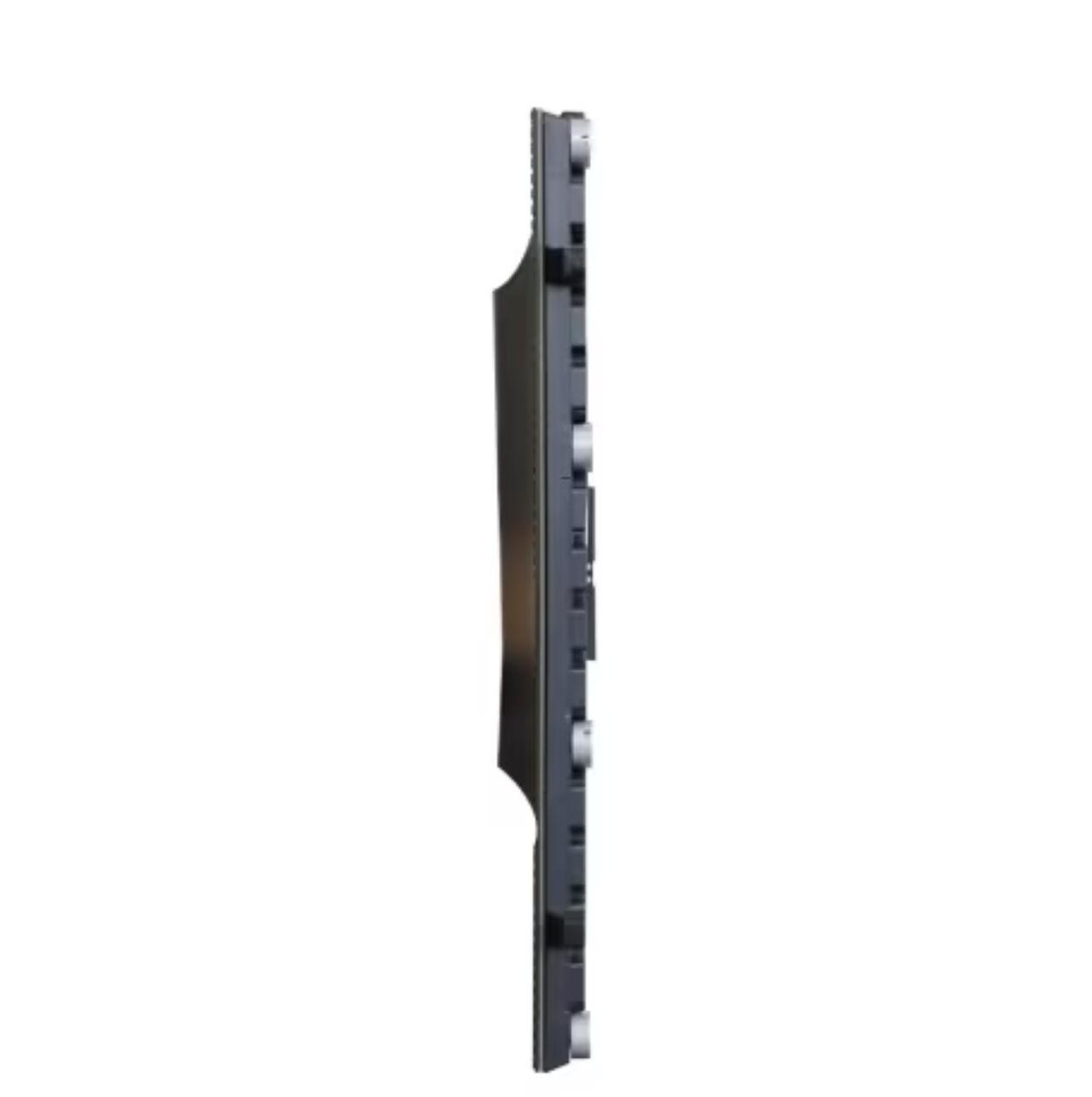

LED Display Flexible Screen - LCCM

Key Features

  • Pixel Pitch: 1.90 mm
  • Brightness: 800 nit
  • Creative LED Screen
  • Easy Installation and Maintenance
  • Compatibility with LG Software Solutions


A flexible LED display with a pixel pitch of P1.20 is a high-resolution display solution that offers exceptional visual performance. The pixel pitch of P1.20 indicates that the distance between the centers of adjacent pixels is 1.20 millimeters. This extremely small pixel pitch allows for a very high pixel density, resulting in incredibly detailed and sharp visuals.

A flexible LED display with a P1.20 pixel pitch is ideal for applications where close viewing distances are expected, such as indoor events, exhibitions, retail environments, or any setting that requires immersive and high-quality visual experiences. The small pixel pitch ensures that text, images, and videos appear crisp and vibrant, making it excellent for brand advertising and promotional content.

The flexibility of the display allows it to be bent, curved, or shaped to suit various installation requirements. This versatility enables creative and unique display configurations, offering you the freedom to design captivating and impactful installations that align with your brand's aesthetics and messaging.


OPTICAL SPECIFICATIONS
Max Brightness (After Calibration, Nit) : 800
Color Temperature (K) : 3,200~9,300
Visual Viewing Angle (Horizontal) : 160
Visual Viewing Angle (Vertical) : 160
Brightness Uniformity : 97%
Color Uniformity : ±0.003CxCy
Contrast Ratio : 5,000:1
Processing Depth (bit) : 14 (HDR10, HDR10 Pro)

CERTIFICATION
Certification : CE, FCC, ETL

PHYSICAL PARAMETERS
Pitch Name : P1.9
Pixel Configuration : 3 in 1
Pixel Pitch(mm) : 1.90
Module Resolution (WxH) : 168x84
Module Dimensions(WxH,mm) : 320x160m
Weight Per Module (kg) : 0.55
Physical Pixel Density (pixels/m²) : 275,625
Service Access : Front

ELECTRICAL SPECIFICATIONS
Power Consumption (W/Cabinet, Max.) : 36
Power Consumption (W/Cabinet, Avg.) : 12.00
Power Consumption (W/m², Max.) : 720
Heat Dissipation (BTU/h/Cabinet, Max.) : 123
Heat Dissipation (BTU/h/Cabinet, Avg.) : 41
Heat Dissipation (BTU/h/m², Max.) : 2,457
Power Supply (V) : 100 to 240
Frame Rate (Hz) : 50 / 60
Refresh Rate (Hz) : 1,920
