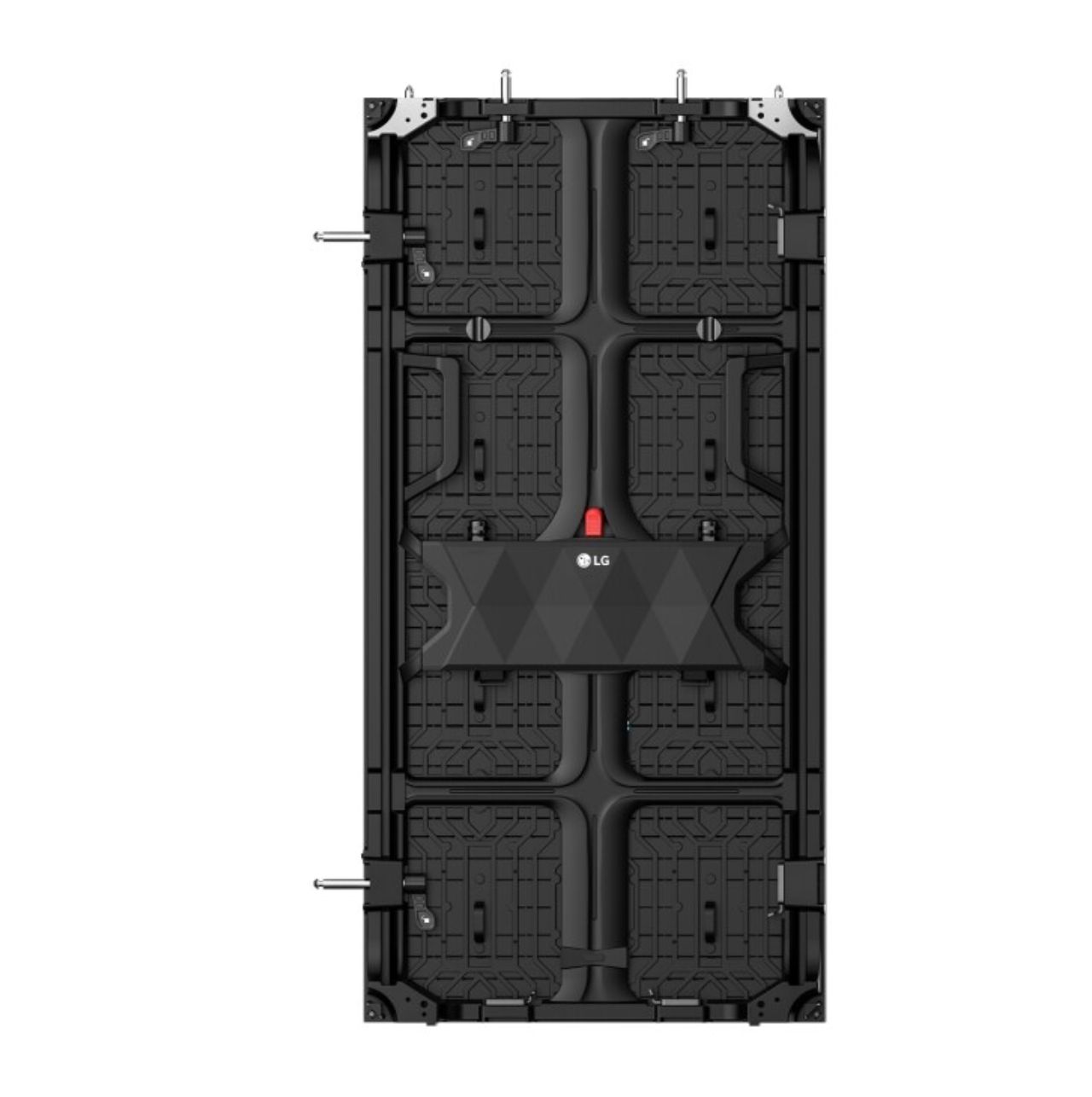

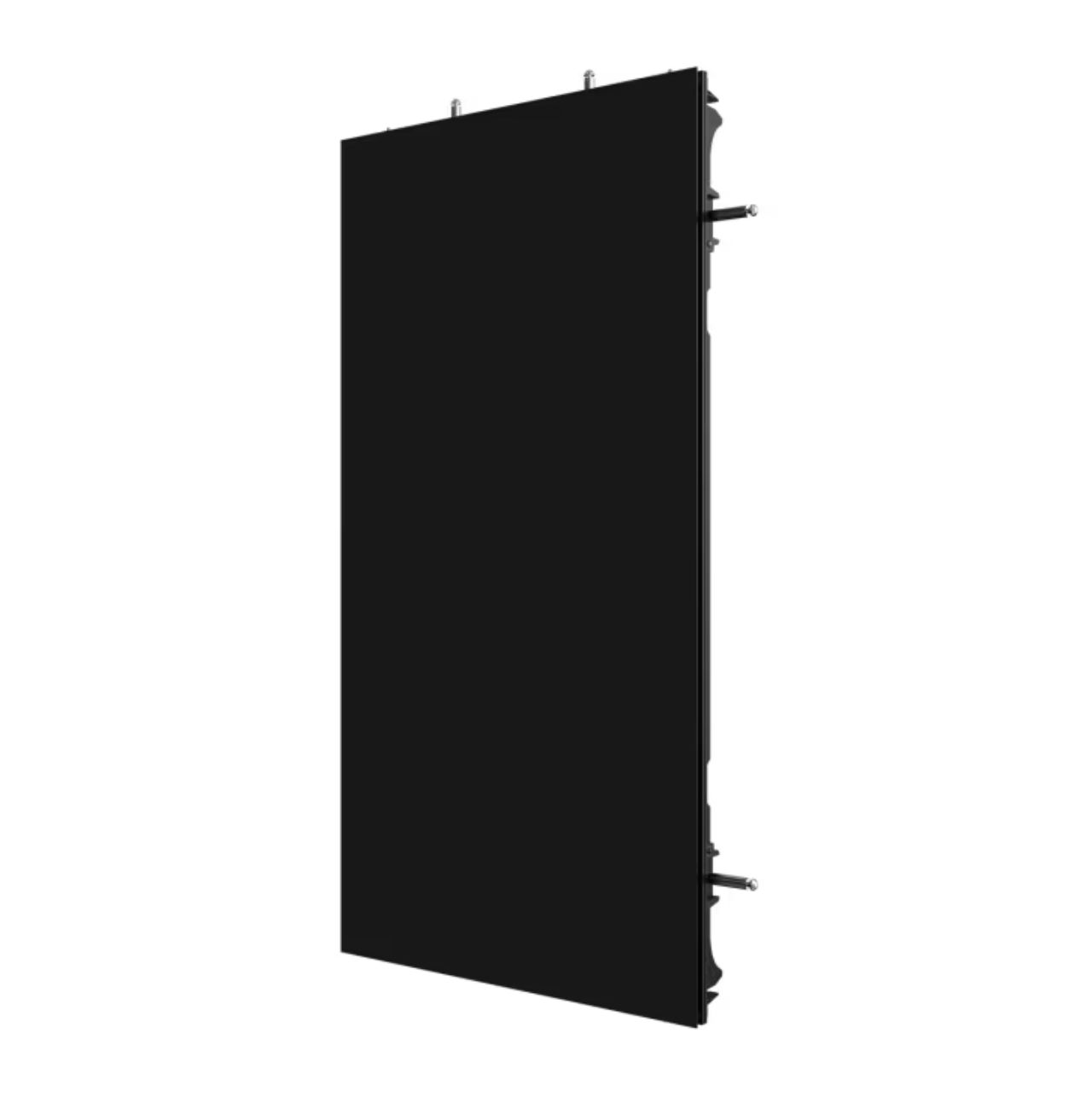

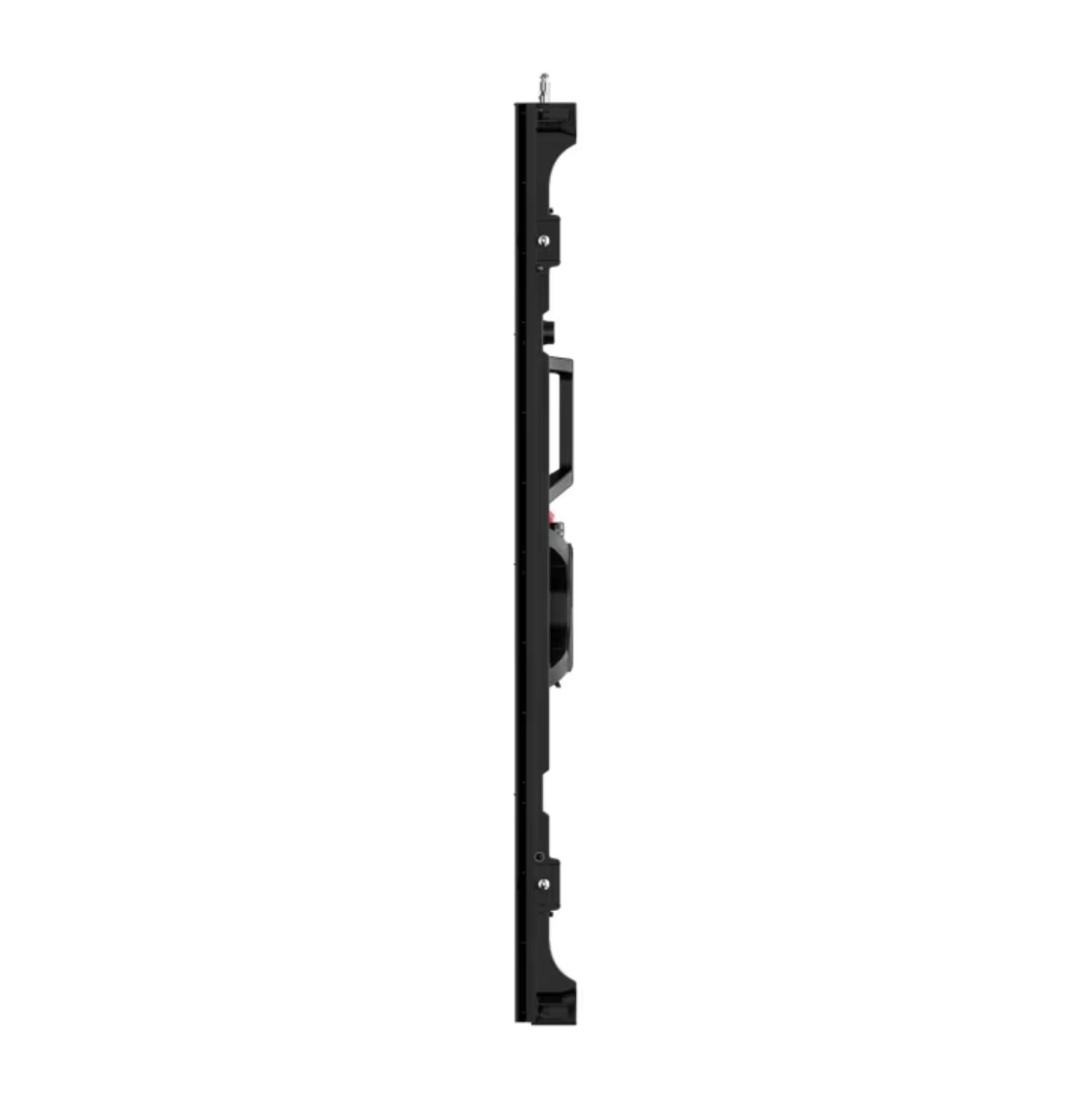

LED Display Window Facing - LWBC

Key Features

  • Pixel Pitch: 2.98 mm
  • Brightness: 3,500 nit
  • Slim Bezel
  • Long-lasting High Performance
  • Quick Lock & Flip Design
  • Front or Rear Serviceability


A window-facing LED display with a pixel pitch of P2.98 and high visibility under sunlight can indeed be an excellent choice for brand promotion. This type of display is specifically designed to deliver vibrant and highly visible content, even in bright outdoor lighting conditions.

The pixel pitch of P2.98 indicates that the distance between the centers of adjacent pixels is 2.98 millimeters. This pixel density allows for sharp and detailed visuals, ensuring that your brand message or promotional content is displayed with clarity.

The high brightness and contrast levels of the LED display enable it to overcome the challenges of direct sunlight. It ensures that your content remains visible and impactful, capturing the attention of potential customers and enhancing your brand promotion efforts.

By installing a window-facing LED display with these specifications, you can effectively showcase your brand, products, special offers, or any other relevant information to people passing by your shop or business. It provides an eye-catching and engaging medium to communicate your message and attract customers.


OPTICAL SPECIFICATIONS
Max Brightness (After Calibration, Nit) : 3,500
Color Temperature (K) : 3,200-9,300
Visual Viewing Angle (H × V) : 160 × 140
Brightness Uniformity : 97%
Color Uniformity : ±0.003 Cx,Cy
Contrast Ratio (Typ.) : 5,000
Processing Depth (bit) : 16 (HDR10, HDR10 Pro)

PHYSICAL PARAMETERS
Pixel Configuration : 3 in 1 SMD
Pixel Pitch (mm) : 2.976
Module Resolution (W × H) : 84 × 84
Module Dimensions (W × H, Mm) : 250 × 250
Weight Per Module (kg, ±0.003 Kg) : 0.70
No. Of Modules Per Cabinet (W × H) : 2 × 4
Cabinet Resolution (W × H) : 168 × 336
Cabinet Dimensions (W × H × D, Mm) : 500 × 1,000 × 68
Cabinet Surface Area (m²) : 0.500
Weight Per Cabinet (kg/Cabinet) : 12.0
Weight Per Square Meter (kg/m²) : 24.0
Physical Pixel Density (pixels/m²) : 112,896
Flatness Of Cabinet (mm) : 0.5
Cabinet Material : Die Casting Aluminum
Service Access : Front or Rear

OPERATION SPECIFICATIONS
Lifetime (Half Brightness) : 100,000
Operating Temperature (°C) : -20 to +40
Operating Humidity : 10-90% RH
IP Rating Front / Rear : IP5X / IP5X
