Choose Screen Size

P3.91
P2.98

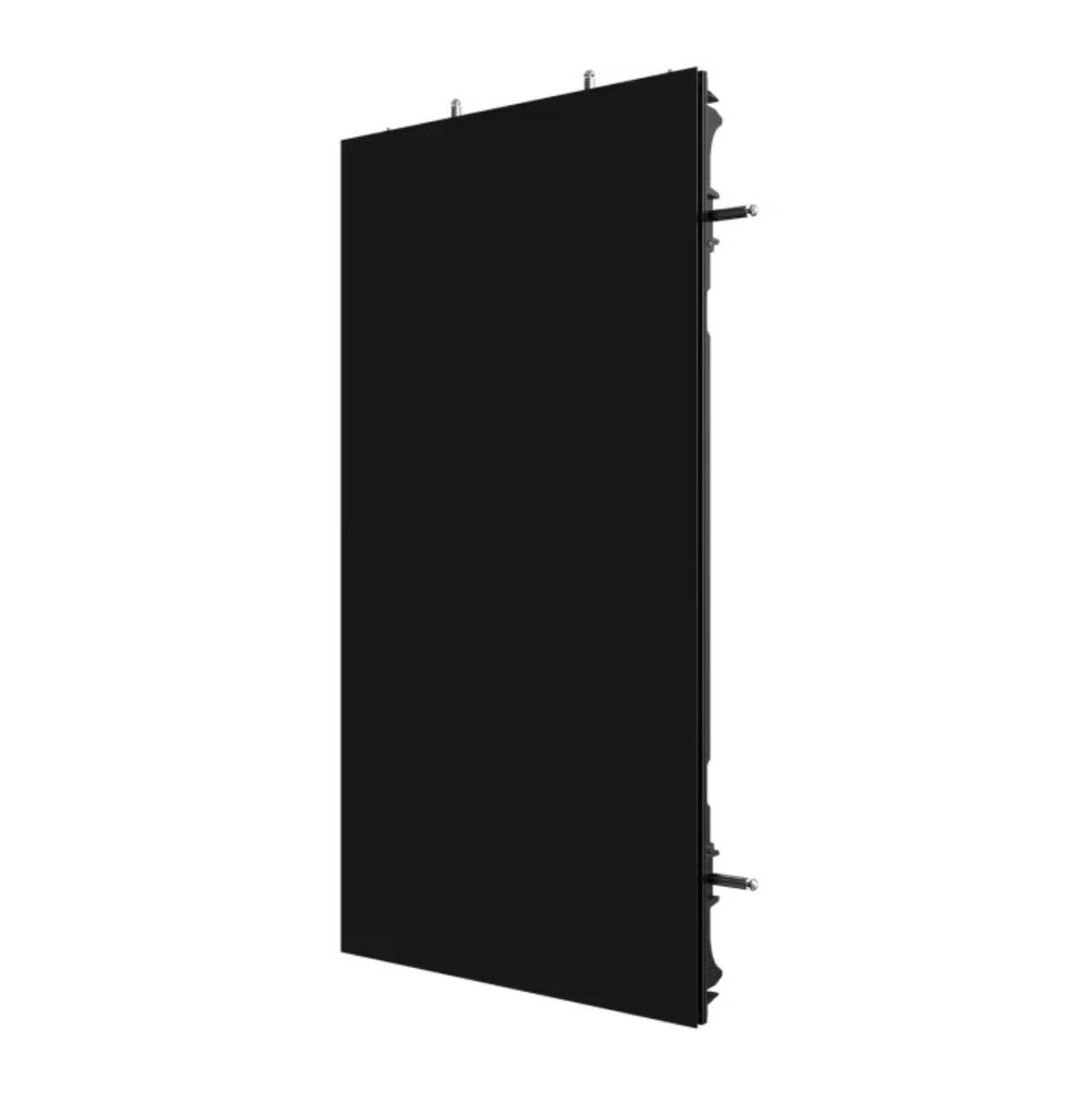

Window Facing LED Screen - LWBC

Key Features

  • Pixel Pitch: 3.91 mm
  • Brightness: 3,500 nit
  • Slim Bezel
  • Long-lasting High Performance
  • Quick Lock & Flip Design
  • Front or Rear Serviceability


A window-facing LED screen with a pixel pitch of P3.91 can be an excellent choice for your shop or business. This type of display is designed to be installed behind a window or glass surface, allowing you to showcase dynamic content to attract customers or convey important information.

The pixel pitch of P3.91 indicates that the distance between the centers of adjacent pixels is 3.91 millimeters. This pixel density allows for clear and detailed visuals, even when viewed from a relatively close distance. The LED screen's brightness and contrast are typically optimized to ensure visibility even in bright outdoor lighting conditions.


OPTICAL SPECIFICATIONS
Max Brightness (After Calibration, Nit) : 3,500
Color Temperature (K) : 3,200-9,300
Visual Viewing Angle (H × V) : 160 × 140
Brightness Uniformity : 97%
Color Uniformity : ±0.003 Cx,Cy
Contrast Ratio (Typ.) : 5,000
Processing Depth (bit) : 16 (HDR10, HDR10 Pro)

PHYSICAL PARAMETERS
Pixel Configuration : 3 in 1 SMD
Pixel Pitch (mm) : 3.906
Module Resolution (W × H) : 64 × 64
Module Dimensions (W × H, Mm) : 250 × 250
Weight Per Module (kg, ±0.003 Kg) : 0.70
No. Of Modules Per Cabinet (W × H) : 2 × 4
Cabinet Resolution (W × H) : 128 × 256
Cabinet Dimensions (W × H × D, Mm) : 500 × 1,000 × 68
Cabinet Surface Area (m²) : 0.500
Weight Per Cabinet (kg/Cabinet) : 12.0
Weight Per Square Meter (kg/m²) : 24.0
Physical Pixel Density (pixels/m²) : 65,536
Flatness Of Cabinet (mm) : 0.5
Cabinet Material : Die Casting Aluminum
Service Access : Front or Rear

OPERATION SPECIFICATIONS
Lifetime (Half Brightness) : 100,000
Operating Temperature (°C) : -20 to +40
Operating Humidity : 10-90% RH
IP Rating Front / Rear : IP5X / IP5X
